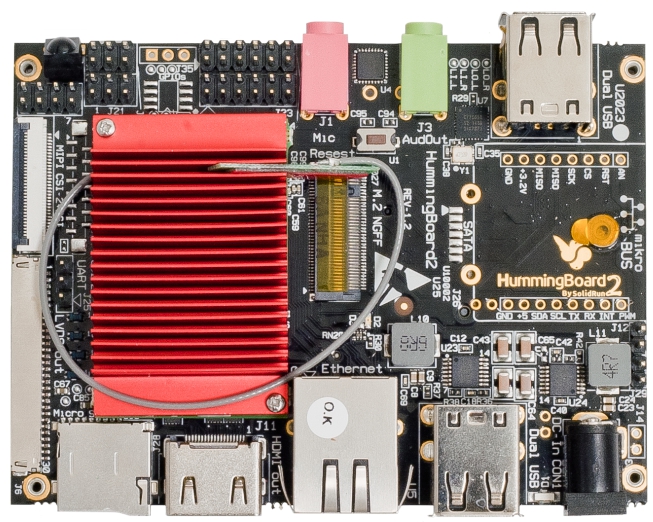

Hummingboard Edge / Gate¶
| System on Chip | NXP IMX6DQRM |
| Number GPIO | 33 |
| Status | Fully supported |
Supported Features¶
| Read / Write |  |
| Interrupt | |
Platform Selection¶
Due to the SolidRun System On Module (SOM) feature, a right combination of platform and SOM needs to be configured to get proper wiringX support for your platform.
| Platform | SOM | wiringX |
| Hummingboard Edge | i1 i.MX6 Solo | hummingboard_edge_sdl |
| Hummingboard Gate | i1 i.MX6 Solo | hummingboard_gate_sdl |
| Hummingboard Edge | i2 i.MX6 Dual Lite | hummingboard_edge_sdl |
| Hummingboard Gate | i2 i.MX6 Dual Lite | hummingboard_gate_sdl |
| Hummingboard Edge | i2eX i.MX6 Dual | hummingboard_edge_dq |
| Hummingboard Gate | i2eX i.MX6 Dual | hummingboard_gate_dq |
| Hummingboard Edge | i4Pro i.MX6 Quad | hummingboard_edge_dq |
| Hummingboard Gate | i4Pro i.MX6 Quad | hummingboard_gate_dq |
GPIO Mapping¶
| ? | ? | ? | ? | ? |
| ? | ? | ? | ? | ? |
| 31 | 27 | 0v |
| 3.3v | 28 | 24 |
| 5v | 29 | 25 |
| 5v | 30 | 26 |
| 19 | 15 | 11 | 7 | 3 | 0 |
| 20 | 16 | 12 | 8 | 4 | 1 |
| 21 | 17 | 13 | 9 | 5 | 2 |
| 22 | 18 | 14 | 10 | 6 | 0v |
Only the bold GPIO can be used as interrupt.
